アメリカ規格フランジスイングチェックバルブ

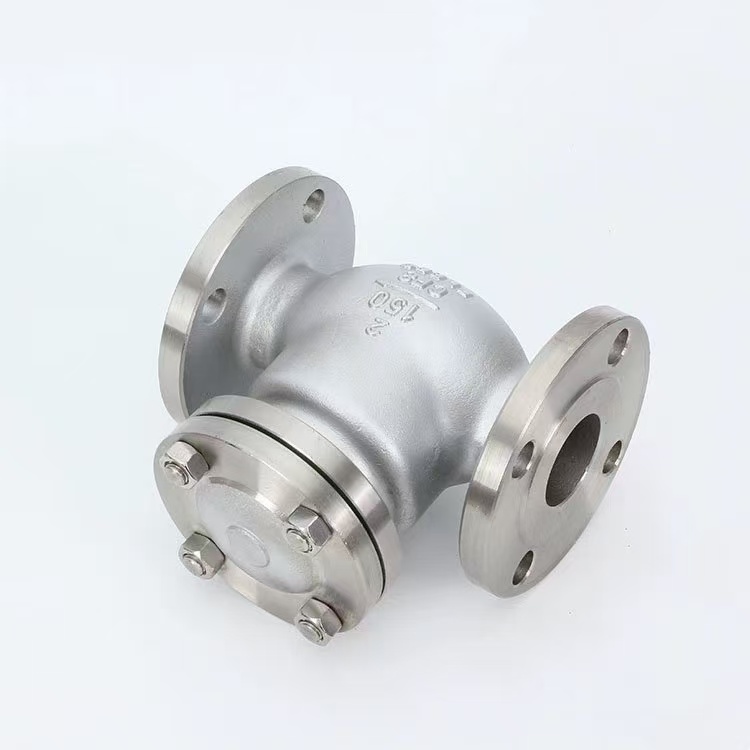

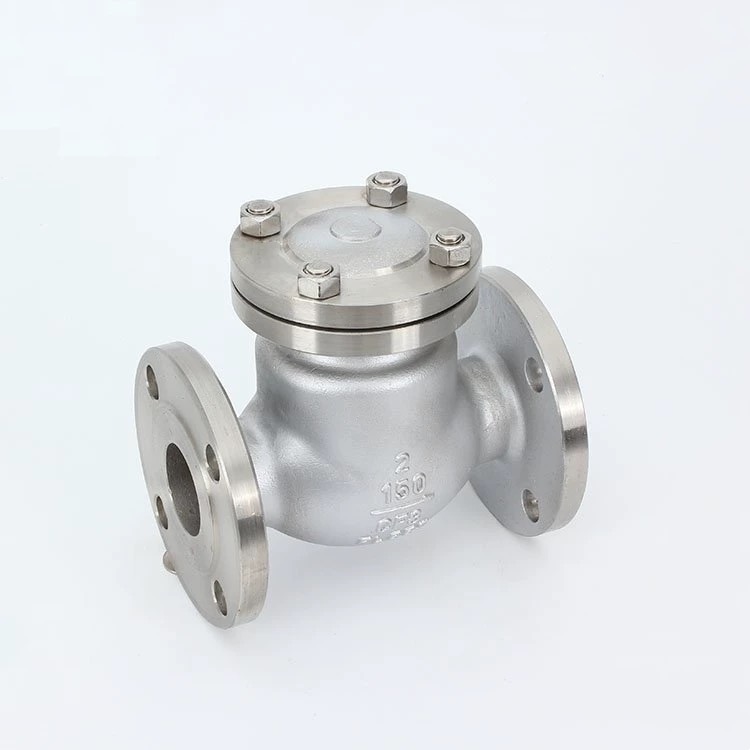

What is an American Standard Flanged Swing Check Valve?

Shenchi factory's quality American Standard Flanged Swing Check Valve from Shenchi Standard operates on the principle of automatic opening and closing based on differential pressure. When the medium flows in the specified direction, the forward pressure overcomes the valve disc's own weight, pushing the valve disc to swing open around the hinge, allowing the medium to pass smoothly. Once the medium pressure drops or backflow occurs, the valve disc, under the combined action of its own weight and the reverse medium pressure, quickly swings back to close, tightly sealing the sealing surface, thus effectively preventing pipeline backflow. Corrosion-resistant materials such as WCB carbon steel, SUS304 (CF8), or SUS316L (CF3M) are available to ensure a tight seal.

Product Parameters

Product Name: American Standard Flanged Swing Check Valve	Check Valve Specifications: (1/8"-4") DN6-DN100
Nominal Pressure: PN16	Body Material: WCB, SUS304 (CF8), SUS316L (CF3M)
Standards: ANSI, BS, DIN, ISO, JIS	Applicable Temperature: -20℃ ~ +150℃ (standard), up to +350℃ (high temperature), down to -196℃ (low temperature)
Internal Metal Material: WCB, SUS304 (CF8), SUS316L (CF3M)	Medium Temperature: High temperature, low temperature, medium temperature, normal temperature
Operation Method: Manual	Seals: EPDM, PPL
Connection Method: Flange connection	Applications: Water, air, gas, oil, liquids, etc.
Origin: China	Sample: Samples available

Global Standards, Direct Supply.

Welcome to learn about the Shenchi brand ASME flanged swing check valve. As a professional exporter of ASME flanged swing check valves manufactured in China, we offer direct supply services. This national standard ASME flanged swing check valve conforms to multiple international standards including ANSI, BS, DIN, ISO, and JIS, with sizes covering 1/8"-4" (DN6-DN100). The flange connection provides a reliable seal. Please feel free to contact us for a price list of ASME flanged swing check valves.

Automatic opening and closing, precise backflow prevention

The Shenchi ASME standard flanged swing check valve operates automatically using the power of the medium itself, requiring no external drive. When the medium flows in the specified direction, the forward pressure pushes open the swing valve disc, allowing the medium to flow smoothly. When the forward pressure drops or backflow occurs, the valve disc automatically swings back to close under its own weight and the pressure of the reverse medium, cutting off the backflow path. This automatic opening and closing mechanism effectively prevents water hammer and backflow from damaging equipment such as pumps and compressors, making it an indispensable safety protection device in pipeline systems.

Multi-industry coverage, all-condition adaptability

Shenchi's national standard American standard flanged swing check valves are widely used in multiple industrial fields. Petrochemical industry: Used in pipeline systems for crude oil, refined oil, and chemical media to prevent backflow and safety accidents. Power industry: Installed in boiler feedwater and cooling water circulation systems to protect critical equipment. Municipal water supply: Used at the pump station outlets of waterworks and sewage treatment plants to prevent water hammer damage to pipelines. Metallurgy and pharmaceuticals: Suitable for various liquid and gas media, meeting different cleanliness requirements. Applicable media include water, air, gas, petroleum, and various industrial liquids, with media temperatures covering normal, medium, low, and high temperatures.

Customized Solutions, Global Supply

As a Chinese exporter of ASME standard flanged swing check valves, Shenchi fully supports ODM and OEM customization services. Whether you require WCB, CF8, or CF3M materials, or NPT, BSP, BSPT, or DIN thread standards, we can produce to your specifications. Samples are available for standard sizes; mass production will commence after customer confirmation. For the latest prices of ASME standard flanged swing check valves with a quotation, or to inquire about cooperation with other ASME standard flanged swing check valve exporters, please contact us immediately. Shenchi looks forward to becoming your long-term partner in the industrial valve category.
