Related Products: Single-Clip 90-Degree B-Type Elbow

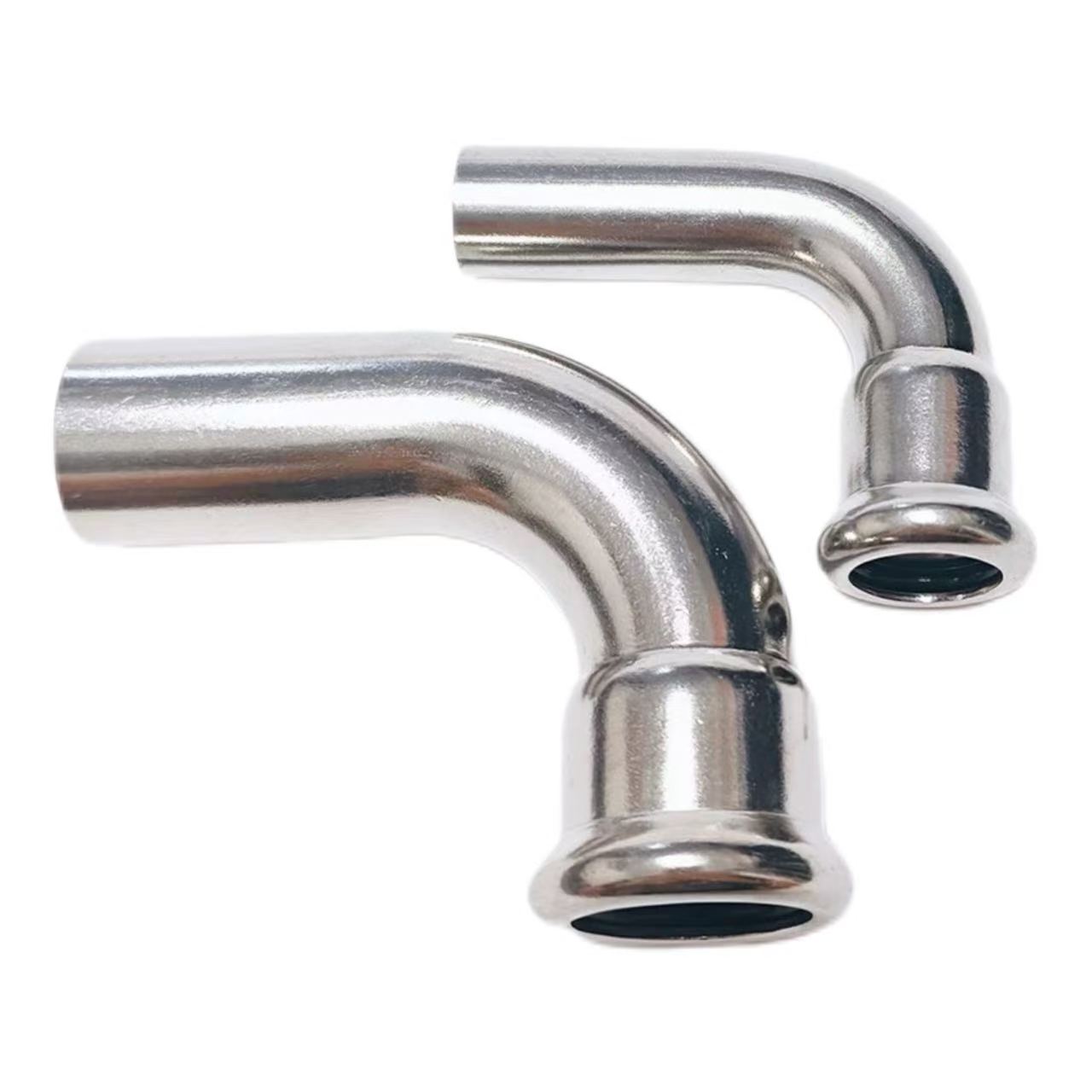

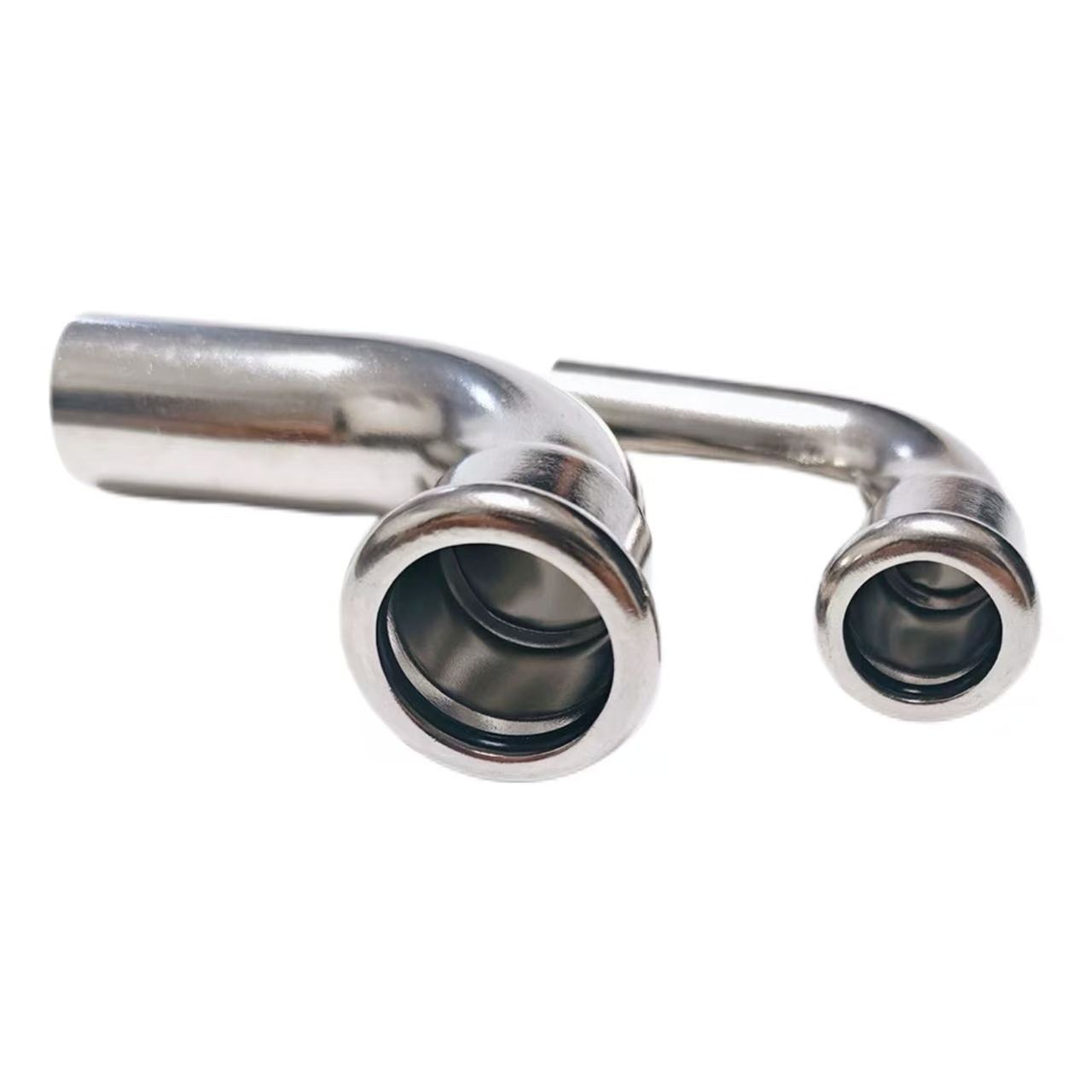

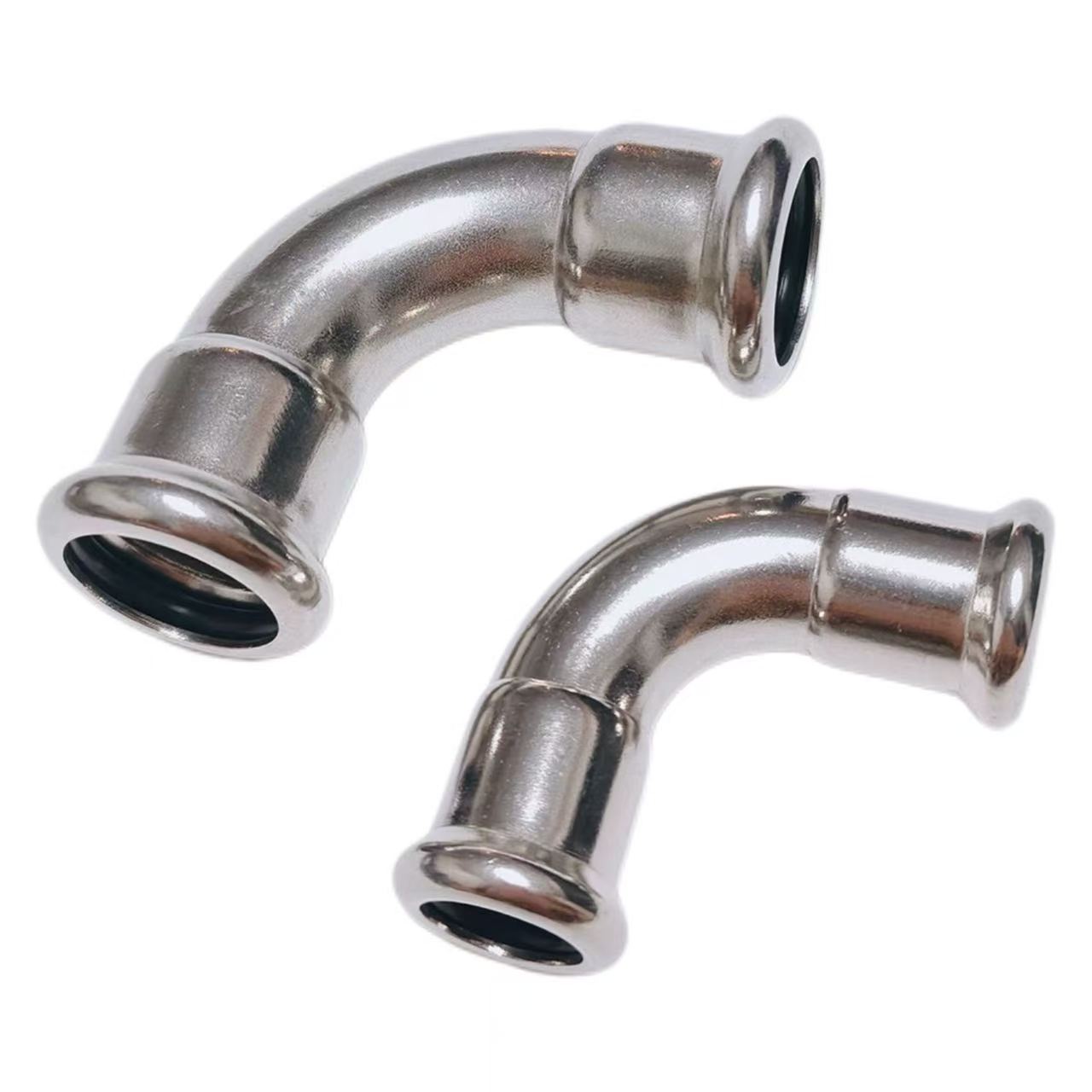

The Shenchi single-clip 90-degree B-type elbow is designed for thin-walled stainless steel piping systems, providing an efficient and reliable right-angle turning solution. The product is crafted from high-quality materials such as brass, SUS304, and SUS316L, ensuring corrosion resistance, durability, and robustness. The single-clip connection design allows for convenient installation without welding, ensuring safety and efficiency. The B-type structure supports on-site secondary compression or welding adaptation, flexibly adapting to different working conditions. The smooth inner wall of the fitting results in low flow resistance and is less prone to scaling, ensuring clean and smooth media delivery. It is widely applicable to water supply and drainage, HVAC, and industrial piping systems.

Product Parameters

Advantages of Manual Hydraulic Operation

Shenchi's manual hydraulic single-clamp 90-degree elbows utilize manual hydraulic tools for crimping connections. During operation, insert the pipe into the fitting socket to the marked depth, align the manual hydraulic clamps with the ribs on the fitting, and press the handle to increase pressure. Once the set pressure is reached, it automatically releases pressure and resets. The manual hydraulic method requires no external power supply, making it suitable for work in areas without electricity or in confined spaces. Compared to purely manual crimping pliers, the hydraulic method provides more even force and more stable crimping quality, especially suitable for large-diameter fittings of DN50 and above, saving effort and ensuring reliable sealing.

Installation Steps and Key

Control Points Installing a single-press 90-degree elbow with preferential treatment from Shenchi requires following five steps: Step 1: Cut the pipe vertically, removing all internal and external burrs to prevent scratching the sealing ring. Step 2: Draw depth marks on the pipe to ensure it is fully inserted. Step 3: Insert the pipe into the fitting socket until it reaches the internal positioning step. Step 4: Select a crimping jaw that matches the pipe diameter, align it with the fitting's rib, and ensure the jaws are vertically wrapped around the fitting. Step 5: Use a manual hydraulic tool to apply pressure until the jaws are fully closed and the hexagon is clearly visible. After crimping, check if the marking lines are covered by the socket end face.

Material Selection and Applicable Scenarios

Shenchi manual hydraulic single-clamp 90-degree elbows are available in three materials: Brass: High cost-performance ratio, good processing performance, suitable for civil systems such as water supply and gas. SUS304 Stainless Steel: General-purpose stainless steel, excellent corrosion resistance, meets drinking water hygiene standards, suitable for domestic water supply and general industrial media. SUS316L Stainless Steel: Added molybdenum, strong resistance to chloride ion pitting corrosion, suitable for highly corrosive conditions such as coastal areas, seawater environments, and chemical plants. Seals are uniformly made of EPDM, temperature resistant from -20℃ to 110℃, resistant to weak acids and alkalis, suitable for various media such as water, air, gas, and petroleum.

Procurement and Customization Services

As a professional supplier of single-clamp 90-degree elbows manufactured in China, Shenchi fully supports ODM and OEM customization services. Whether you need brass, 304, or 316L material, NPT, BSP, BSPT, or DIN threaded interface standards, or DN6 or DN100 specifications, we can produce to your requirements. We maintain ample stock of standard sizes year-round and offer sampling services. Mass production will commence after customer confirmation of the sample. Our products conform to multiple international standards including ANSI, BS, DIN, ISO, and JIS, meeting the needs of international projects. For the latest price quotes on discounted single-clamp 90-degree elbows, or to inquire about wholesale cooperation, please contact us immediately.
