シングルクランプ等径ティー

Related Products: Single-Press Equal-Diameter Tees

In addition to single-press equal-diameter tees, Shenchi also produces a series of single-press equal-diameter tees to meet diverse needs for pipe diameter reduction and branching.

Different Structural Definitions:

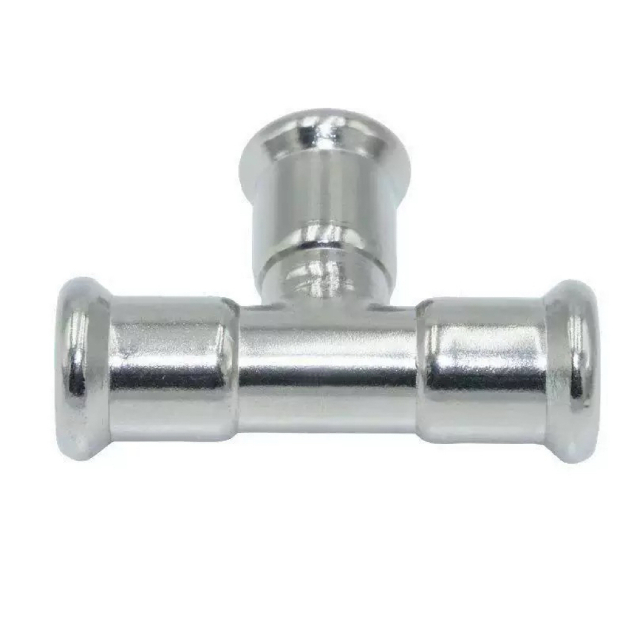

Single-Press Equal-Diameter Tees: All three ports have identical inner diameters. Used to vertically branch off a main pipe with the same diameter as the main pipe, forming a "T"-shaped equal-diameter branch.

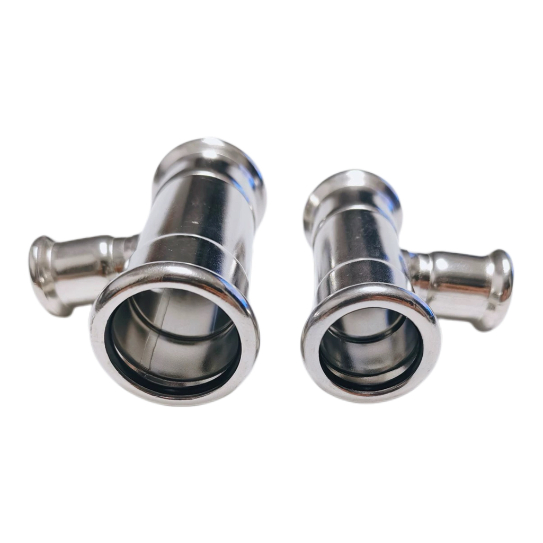

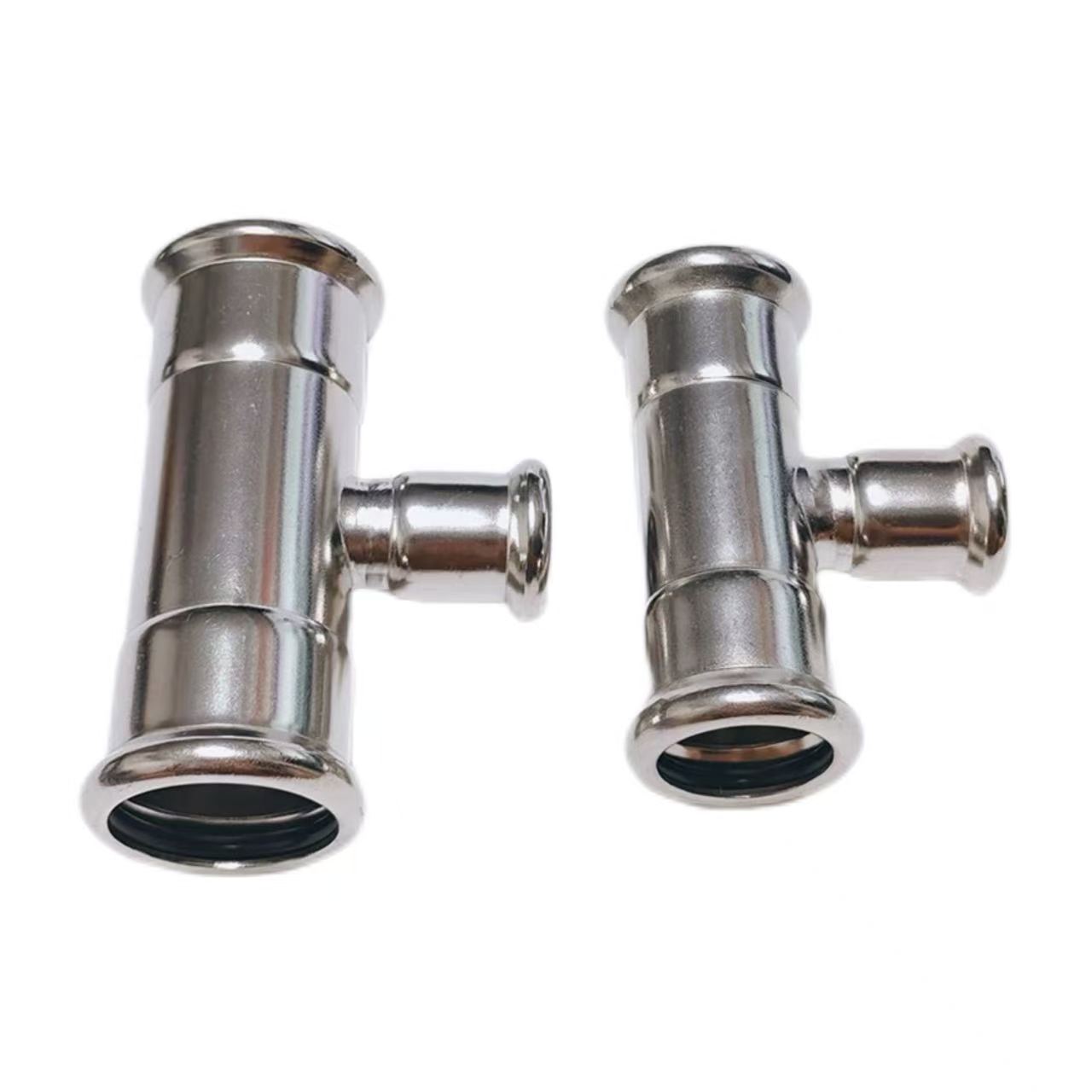

Single-Press Equal-Diameter Tees: Of the three ports, the main pipe has the same diameter at both ends, while the branch pipe has a smaller diameter. Used to branch off a smaller diameter branch off a main pipe, achieving a diameter reduction connection.

Product Parameters

Single card pressure connection principle

The core technology of Shenchi's easy-to-install single-press equal diameter tee lies in its single-press connection. During installation, the thin-walled stainless steel pipe is inserted into the fitting socket to the marked position, and a special pressing tool is used to apply radial compression to the pressing area. Under pressure, the fitting and pipe undergo simultaneous plastic deformation, forming a 360° circumferential clamping force. Simultaneously, the pre-installed EPDM rubber sealing ring inside the socket is compressed, achieving an elastic seal. The entire installation process takes only a few seconds, requiring no open flame, no threading, and no welding. It is simple to operate, offers stable quality, and is particularly suitable for rapid on-site construction.

II. Wide Range of Applications

Shenchi single-clamp equal diameter tees are widely used in multiple fluid transportation fields. Domestic water supply systems: Used for hot and cold water pipe branches in residential and commercial buildings; stainless steel construction ensures water quality remains uncontaminated. Gas transportation: Suitable for natural gas and liquefied petroleum gas pipelines; the clamp-fit connection provides a reliable seal with no risk of leakage. HVAC systems: Used for chilled water and cooling water pipe branches; stable pressure and temperature resistance. Industrial fluid transportation: Suitable for compressed air, chemical liquids, petroleum, and other media; brass and stainless steel options are available. Fire sprinkler systems: The clamp-fit connection allows for quick installation, meeting the requirements for rapid construction of fire sprinkler systems.

III. Material Configuration and Selection

Shenchi single-clamp equal diameter tees offer three high-quality body materials: Brass: Excellent processing performance and corrosion resistance, suitable for water supply and gas systems, offering high cost-effectiveness. SUS304 Stainless Steel: General-purpose stainless steel with excellent corrosion resistance, suitable for drinking water and general industrial media, meeting sanitary requirements. SUS316L Stainless Steel: With added molybdenum, it has stronger resistance to chloride ion corrosion, suitable for coastal areas, seawater environments, and highly corrosive chemical media. All seals are made of EPDM, which is heat-resistant, aging-resistant, and resistant to weak acids and alkalis, with a wide applicable temperature range. The connection method is press-fit, conforming to domestic and international press-fit pipe fitting standards.

IV. Procurement and Customization Services As a Chinese exporter of single-clamp equal tees

Shenchi fully supports ODM and OEM customization services. Whether you need brass, 304, or 316L material, and NPT, BSP, BSPT, or DIN thread standards, we can produce to your specifications. Samples are available for standard sizes; mass production will commence after customer confirmation. Our products conform to multiple international standards including ANSI, BS, DIN, ISO, and JIS, meeting the needs of international projects. To obtain the latest prices for single-clamp equal tees with a quotation sheet, or to inquire about cooperation with other single-clamp equal tee exporters, please contact us immediately.
